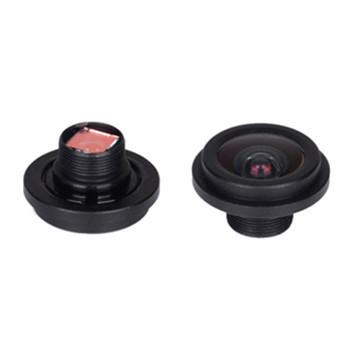

1/4" 2.2mm Megapixel M7*0.35 mount waterproof wide angle lens for vehicle rear-view mirror

Name: 14quot 22mm Megapixel M7035 mount waterproof wide angle lens for vehicle rearview mirror
Brand: CCOM LENS
Price: 1 USD

Place of Origin : China

Model Number : 14022MPF-M7

Packaging Details : Standard

Delivery Time : 2-7 work days

Supply Ability : Samples available

MOQ : 100pcs

Payment Terms : T/T, Western Union, Moneygram, Paypal

Brand Name : CCOM LENS

Contact Now

1.3 Megapixel wide angle lens for vehicle rear-view mirror, 1/4" sensor, 2.2mm, F2.0, M7*0.35P

Model 14022MPF-M7(A1)

IMAGE FORMAT 1/4"

MAX IMAGE CIRCLE Ø 5.3mm

FOCAL LENGTH 2.2mm

F.O.V (D*H*V) 90°*72°*60°

TV DISTORTION <1%

APERTURE F2.0

RESOLUTION 1.3MP

MOUNT M7XP0.35

IRIS Fixed

B.F.L. 3.05mm

F.B.L. 2.25mm

T.T.L. 10.47±0.02 mm

R.I. >67%

DIMENSION Φ11×7.92mm

LENS COMPOMENT 2P2G+IR

CUT FREQUENCY AT 50% 650±10nm

Model 14022MPF-M7(F1)

IMAGE FORMAT 1/4"

MAX IMAGE CIRCLE Ø 5.3mm

FOCAL LENGTH 2.2mm

F.O.V (D*H*V) 90°*72°*60°

TV DISTORTION <-1%

APERTURE F2.0

RESOLUTION 1.3MP

MOUNT M7XP0.35

IRIS Fixed

B.F.L. 3.04mm

F.B.L. 2.29mm

T.T.L. 10.47±0.02 mm

R.I. >67%

DIMENSION Φ14×(8.18±0.02)mm

LENS COMPOMENT 2P2G+IR

CUT FREQUENCY AT 50% 650±10nm
