1/4" 1.1mm F2.4 M7x0.35 mount 150degree wide angle lens for OV7725/OV9712/OV7740

Product Categories

CCOM Electronics Technology Co., Ltd.

Contact Now

Name: 14quot 11mm F24 M7x035 mount 150degree wide angle lens for OV7725OV9712OV7740
Brand: CCOM LENS
Price: 1 USD

Place of Origin : China

Model Number : 14011-M7 14011F-M7

Packaging Details : Standard

Delivery Time : 2-7 work days

Supply Ability : Samples available

Payment Terms : T/T, Western Union, Moneygram, Paypal

Brand Name : CCOM LENS

MOQ : 100pcs

Video Lens : M7 Mount Wide Angle Lens

Resolution : VGA

F.O.V.(D*H*V) : OV7725: 150°x126°x103°

Constructure : 2G2P/2G2P+IR

Contact Now

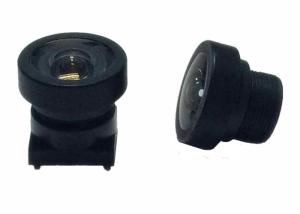

1/4" 1.1mm F2.4 M7x0.35 mount 150degree wide angle lens for OV7725/OV9712/OV7740, VGA M7 lens

Model: 14011F-M7

SENSOR SIZE: 1/4"

FOCAL LENGTH(mm): 1.1

F.O.V.(DxHxV): OV7725: 150°x126°x103°, OV9712: 142.5°x126°x91.5, OV7740: 116°x100°x82°

RESOLUTION: VGA

F/NO: 2.4

B.F.L.(mm): 1.85

F.B.L.(mm): 1.45

T.T.L.(mm): 9.19

TV DISTORTION: <-10.8%

MOUNT(mm): M7xP0.35

IRIS: Fixed

LENS COMPOMEMT: 2G+2P+IR cut

C.R.A.: <23°

DIMENSION(mm): Φ10x7.74

Tips:

- 14011-M7: without IR-Cut filter
- 14011F-M7: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com
